Download Combined Specifications and optional Extras

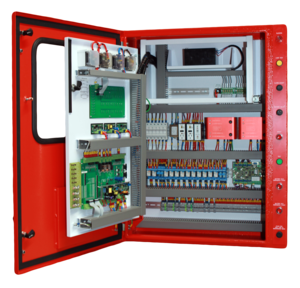

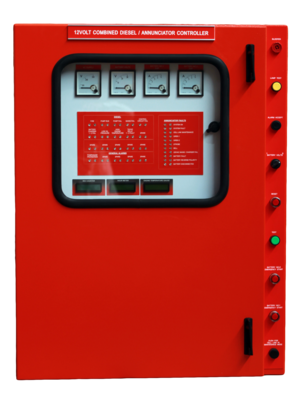

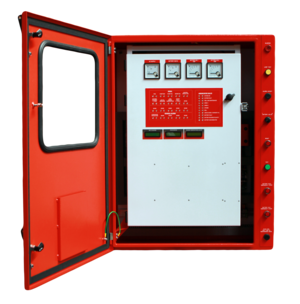

ProAmp Combined Diesel/Annunciator Controller Panel
Features:
Diesel Controller
ASIB Approved & tested
EMI/EMC Line filter
220VAC Output for Extractor fan in pump room
Dual redundant battery chargers
Monitored outputs to Annunciator
Potential free outputs for Building Management System
Potential free outputs to Cellink GSM monitoring board
AC supply Volt meter
DC Battery Voltage meter
DC Battery Current meters
Engine Temperature Gauge
Engine Rev Counter Gauge
Panel and chassis labels engraved
Enclosure material 2mm mild steel
Pressure switch operated
Switchgear used type GE or WEG
Dual redundant tacho relay with adjustable set points
Six Start Attempt relay with digital display
Annunciator
ASIB Approved & tested
20 Zone Input (Monitored)
Monitored Audio & Visual outputs to alarms
Load Resistor to monitor battery status every 6 hours
Data Logger for ± 9000 events
No program required to download logged events to excel
Alarm accept Push Button
Panel Bleeper
Enclosure 2mm mild steel
Supplied with 2 x 12V 12Ah Batteries (sealed maintenance free)
Supplied with audio and visual alarms namely:
Siren No.1 30W ±2.5 A 12VDC
Siren No.2 30W ±2.5 A 12VDC
Bell IP55 ± 500 mA 12VDC
Strobe IP66 red flashing ± 0.1A 12VDC
Alarms mounted under 1.2mm mild steel canopy
Alarms have different monitoring value to avoid incorrect field wiring
Zone 1-20 & Annunciator alarm conditions wired to LED PC board for visual display
Annunciator fault conditions visually displayed on LED PC Board
